Dec 31

2018

Posted on by

Hey All,

I almost didn’t blog for the whole year. To be truthful, it’s been hard to write this past year. Lots of amazing wonderful things have happened to me in 2018, but I’m exhausted. And this blog was easy to overlook. I want to write again, but at my own pace. I’m going to try to start again.

That said…. BEING A FATHER IS AWESOME! I have an amazing little mini me who is 20 months old and is just so much fun. He has made me grow in ways I never even knew imaginable.

Maker Faire Orlando 2018

My friend Jacob and I worked on an awesome project for Maker Faire Orlando this year, and I am so proud to say we won Maker of Merit! It is a deep honor to me to win that award. And of course it’s Raspberry Pi related 😀

We made a 4096 LED pixel framebuffer display powered by the Raspberry Pi!

LED Display playing a clone of Snake
Prototype at the Orlando Science Center

How it works?

We are using P10 LED panels as the basis for the screen. P10 means a 10mm dot pitch, so 10mm between each LED. They range from 3 – 10mm. The panels also usually come in a size of 16 x 32, but luckily they are daisy chainable!

The Raspberry Pi can even handle upto 32 of them in 3 chains! For our purposes we only used 8 16×32 panels in one chain.

8 P10 Panels, daisychained to an Adafruit LED matrix bonnet, connected to a Raspberry Pi 3b+, with power distributed via a CFOL Distro 8 board.

The above picture may look complicated, but it’s not that bad.

8 P10 panels are daisy chained together using a standard HUB75 cable (it’s like an smaller IDE cable).

The panels are mounted together with the orange and red 3D printed brackets.

The first panel is connected to a Raspberry Pi 3B+ via an Adafruit LED matrix bonnet.

The power for the panels and the Pi comes from a 10amp DC supply, which plugs into the bonnet. The bonnet powers the Pi, and has two screw terminals for the voltage output. The +/- screw terminals connect to a CFOL Distro 8 PCB (in the center of the board) which takes the input and breaks it out to 8 screw terminals. We only need 4 since each cable powers two panels, but it gives us room to expand.

After that we use https://github.com/adafruit/rpi-fb-matrix to copy whats on the HDMI framebuffer out onto the LED matrix!

and Voila! You now have a giant low resolution display!

Many thanks to Adafruit for making such a great beginner tutorial that we could jump from, and building a great bonnet for the Pi!

Happy Making and a Happy New Year! Here’s to a wonderful 2019 everyone!

-Shea

Oct 17

Awesome news and MakerFaire Orlando 2016 coming up

Posted on by

Hey All,

I have extremely awesome and happy news to report!  K is pregnant!!!!  We are having a baby!

In other news, MAKERFAIRE ORLANDO 2016 is this weekend at the Central Florida Fairgrounds!!!!

Come see me, FamiLAB, and hundreds of other exhibits showcasing the biggest show and tell on Earth!

Jacob and I have recently finished revision 3 of PiPlay Advance, and it’s looking awesome!

7781242402913675050-account_id1

We are currently testing out a variety of buttons, but it’s coming together really nicely!

And finally, the Elections are coming up soon, and my race for Florida House District 49 is heating up.  I’m very excited to see what happens in the next few weeks.  That being said, I have the most amazing supporters out there!

5710757786610759051-account_id1 7171574424499570207-account_id1

Have a great week all!

-Shea

P.S.: In sadder news, at 91, my Grandmother Bernice passed away peacefully two weeks ago.  I was very hesitant about posting this, because it makes it feel so real now.  She lived an amazing life, and got to hear that she was going to be a great grandmother.  I miss her, and I love her, and it sucked that Hurricane Matthew hit the same week as the funeral, so everything had to be rushed.

Thank you all for being there for me.

Sep 18

Friday Post: Maker Faire Orlando 2015 Was Awesome!

Posted on by

Hey All,

Maker Faire Orlando 2015 was amazing!  It was awesome.  So much fun was had by all.  We set a new world record for the tallest arcade machine (playing Bubble Bobble).  I am so proud of all my fellow makers that made the event a success!



You may have noticed an all black arcade cabinet and a game being played at our booth.  A few friends and I are working on a classic shoot em up style game, and it is getting really good.  Hopefully I’ll have more to say about that real soon ™.

Have a good weekend all!

-Shea

Sep 19

Friday Post: Maker Faire and Kano Unboxing!

Posted on by

Hey All,

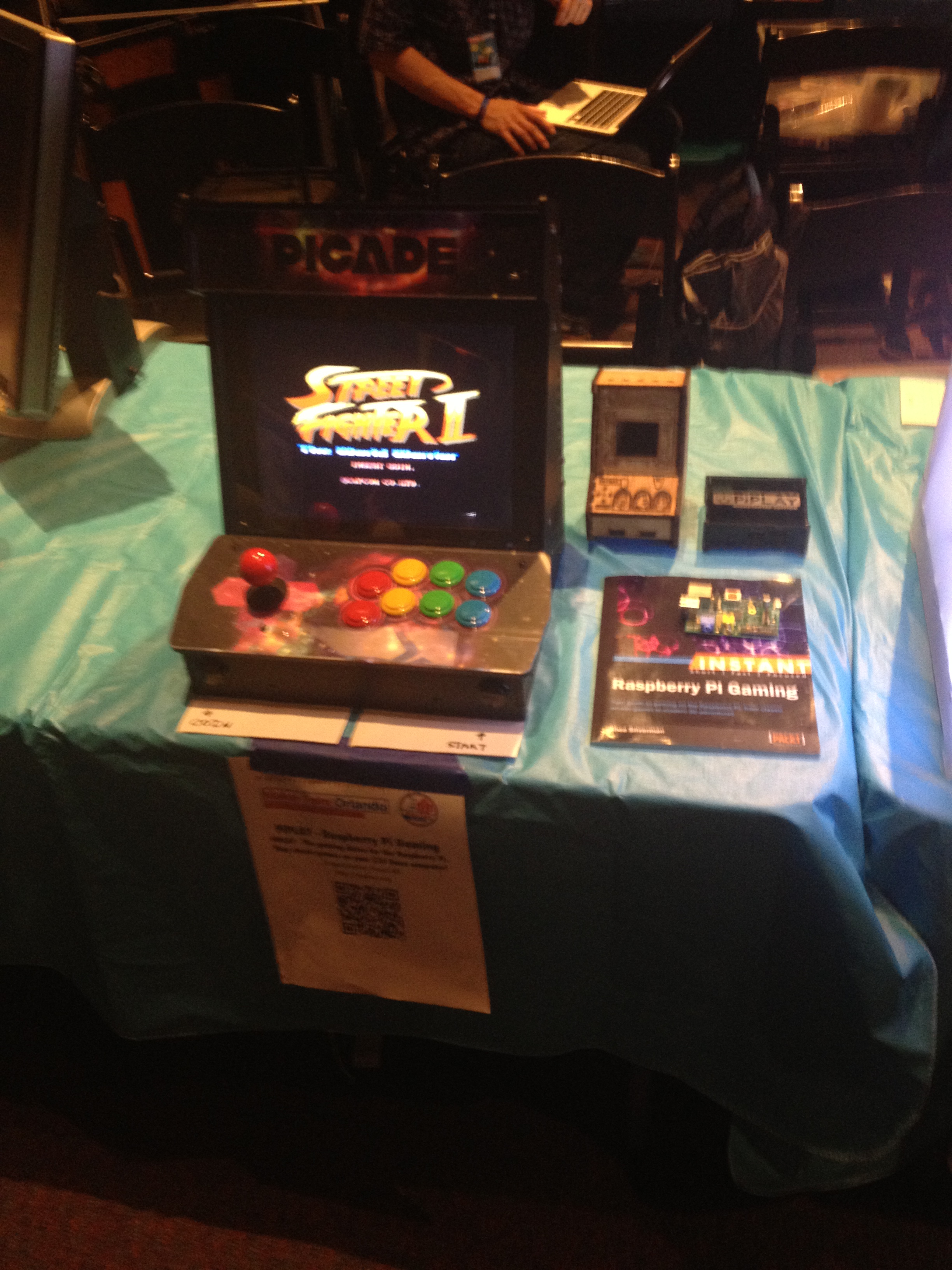

What a week.  Maker Faire was amazing but exhausting!  So many kids playing Street Fighter 2, and so many adults loving the nostalgia.  It was a great time.  Tons of 3D printers, awesome products, and great people all around.  I hope you enjoy the gallery!

I also received my Kano computing kit today.  I haven’t had the chance to boot it up, but I have made a short unboxing video.  The packaging is spectacular, and the custom keyboard is great to hold and use (tested it on my desktop).



The next release of PiPlay is coming together, I hope to release it this weekend.

Small list of changes:

  • modified romlist layout to include area for game descriptions
  • added 2 player controller config support
  • added “button combo” support for PiPlay Menu actions
  • optimization, screen updates only happen on controlled events
  • removed horizontal romlist option in theme support
  • Loading time speed up
  • Wifi Configuration Tool

Have a great weekend all!

-Shea
